Soap Production Line: Complete Lines from 50 to 3000 kg/h
A soap production line from Jasun is a matched set of machines that turns raw material into finished, packed soap bars. Build a complete line for toilet soap, laundry soap or both, from 50 to 3000 kg/h — or start from ready-made soap noodles with a finishing line and add saponification later. KAIFENG JASUN INDUSTRY CO., LTD. has built soap production lines since 2005 and exported them to more than 50 countries. Below you can compare every line type, check the standard machine specifications, and see exactly what to confirm before you order.
Complete soap production lines and single machines from 50 to 3000 kg/h, for laundry soap and toilet soap. For example, start from ready-made soap noodles, or make your own soap noodles from oils with a saponification system. In addition, you choose the capacity and the soap type. Finally, we build the line to match.
Choose a Line by Soap Type and Output
Choose a line by the soap you want to make and the output you need per hour.
| Line type | Capacity | Power* | Workshop needed* | Workers per shift* | Best for |
|---|---|---|---|---|---|
| Toilet Soap Production Line | 50–1000 kg/h (50–100 / 100–200 / 300–500 / 800–1000) | 20–153 KW | (4–30) × 8 × 3.5 m | 2–6 | Toilet soap, bath soap, beauty soap and hotel soap with custom shapes and logos |
| Laundry Soap Production Line | 50–3000 kg/h (50–100 / 100–200 / 300–500 / 1000–1500 / 2000 / 3000) | 8–150 KW | (4–25) × 8 × 3.5 m | 2–6 | Rectangular laundry soap bars; no moulds needed |
| Toilet & Laundry Soap Production Line (combined) | 50–1000 kg/h (50–100 / 100–200 / 300–500 / 800–1000) | 20–155 KW | (4–33) × 8 × 3.5 m | 3–4 | Factories that produce both toilet soap and laundry soap at high volume |
| Handmade Soap Production Line | 150 kg/h | 26 KW | 6 × 4 × 3.5 m | 2–4 | Beginners, handmade and natural soap brands, small batches |
| Saponification System (make soap noodles from oils) | Batch: 50–100 / 300–500 / 1000–1500 / 3000–5000 kg/h; Continuous: 10–15 t/h | 30–200 KW | (4–40) × 12 × 3.5 m | 2–8 | Factories that want to produce their own soap noodles from oils and caustic soda |
* Power, workshop and worker figures for the toilet, laundry and combined lines are approximate figures for reference only — the exact figures depend on the configuration. Workshop sizes are written as (length) × width × height: only the length changes with capacity; the width and height stay the same. Voltage for all lines: 380V/220V, 50/60Hz, and can be customized. Tell us your target capacity and we will send the exact conditions for your configuration.
Not sure which line fits? Send us your soap type and your target output per hour on WhatsApp. We will recommend a configuration and send specifications.
How to Choose a Soap Production Line
Choosing a soap production line comes down to three decisions, in this order.
Decision 1 — which soap? Toilet soap, laundry soap, or both. Toilet soap needs the finer finishing route (refining and milling for a smooth bar); laundry soap is a simpler, higher-volume product. If you will sell both, a combined line runs the two on one set of machines.
Decision 2 — which raw material? From soap noodles: you buy the soap base ready-made and run only the finishing line — mixing, milling, plodding, cutting, stamping, packing. Smaller workshop, smaller crew, faster start; this is the route most new factories take. From oils: you add a saponification system and vacuum drying in front of the same finishing line, and make your own noodles from oils and caustic soda. More floor space, power and workers up front, but a lower raw-material cost for every bar afterwards. The two routes are compared in depth in our oils vs soap noodles guide.
Decision 3 — which capacity? Size the line by the output you can sell per day, in one of the standard tiers: 50–100, 100–200, 300–500 or 800–1000 kg/h, with laundry lines up to 3000 kg/h. Then check the planning numbers for the line type you chose:
| Line type | Capacity | Total power | Line size (L × W × H) | Workers per shift |
|---|---|---|---|---|
| Toilet soap production line | 50–1000 kg/h | 20–153 kW | (4–30) × 8 × 3.5 m | 2–6 |
| Laundry soap production line | 50–3000 kg/h | 8–150 kW | (4–25) × 8 × 3.5 m | 2–6 |
| Combined toilet & laundry line | 50–1000 kg/h | 20–155 kW | (4–33) × 8 × 3.5 m | 3–4 |
| Handmade soap line | 150 kg/h | 26 kW | 6 × 4 × 3.5 m | 2–4 |
| Saponification system (add-on, for the oils route) | Batch 50–100 up to 3000–5000 kg/h; continuous 10–15 t/h | 30–200 kW | (4–40) × 12 × 3.5 m | 2–8 |
All lines are wired for your country's supply — 380V/220V, 50/60Hz, customised to order. If you tell us your soap type, your raw material and your target tier, we will confirm which line fits and quote it; the capacity guide explains the tier arithmetic.
A. Complete Production Lines

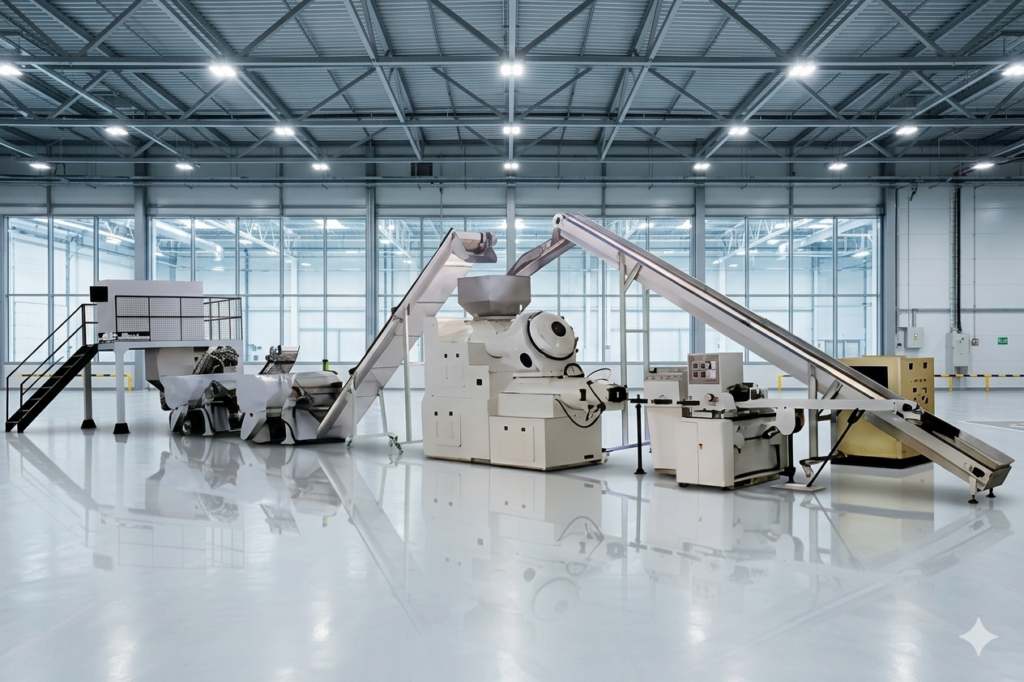

Automatic Toilet Soap Production Lines
First, this complete finishing line turns soap noodles into moulded toilet and bath soap bars.
Key spec: 50–1000 kg/h in four tiers (50–100 / 100–200 / 300–500 / 800–1000); power 20–153 KW by configuration; 2–6 workers per shift.
Automatic Laundry Soap Production Lines
In addition, this complete finishing line is for rectangular laundry soap bars, starting from soap noodles.
Key spec: 50–3000 kg/h in six tiers; power 8–150 KW by configuration; 2–6 workers per shift.

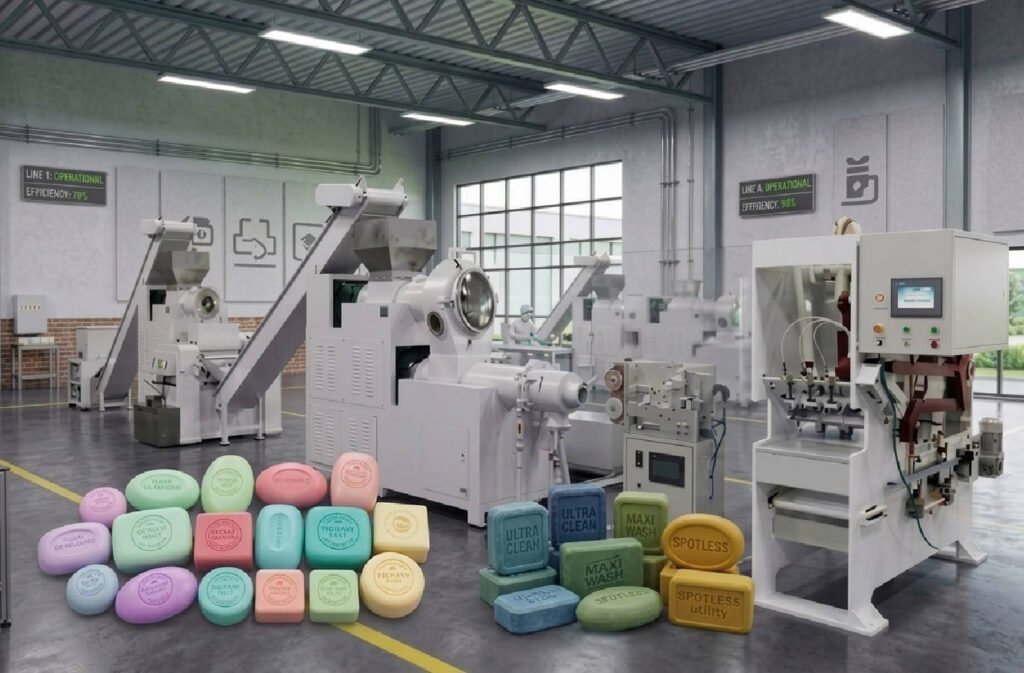

Automatic Toilet Soap & Laundry Soap Production Lines
Moreover, one high-capacity line produces both toilet soap and laundry soap.
Key spec: 50–1000 kg/h in four tiers (50–100 / 100–200 / 300–500 / 800–1000); power 20–155 KW by configuration; 3–4 workers per shift.

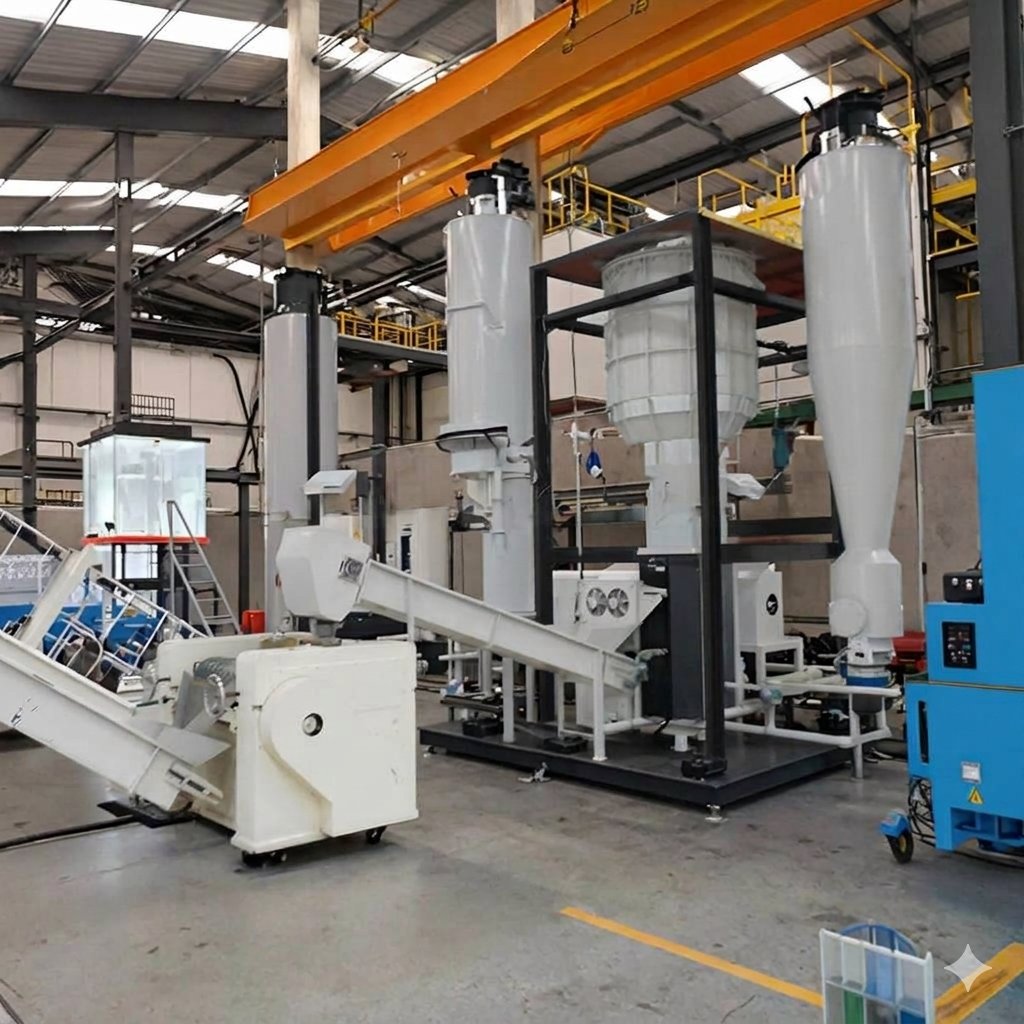

Soap Saponification Systems
Finally, make your own soap noodles from oils and caustic soda, with vacuum drying.
Key spec: batch systems 50–5000 kg/h; continuous systems 10–15 t/h; power 30–200 KW by configuration.
B. Single Machines — in Process Order

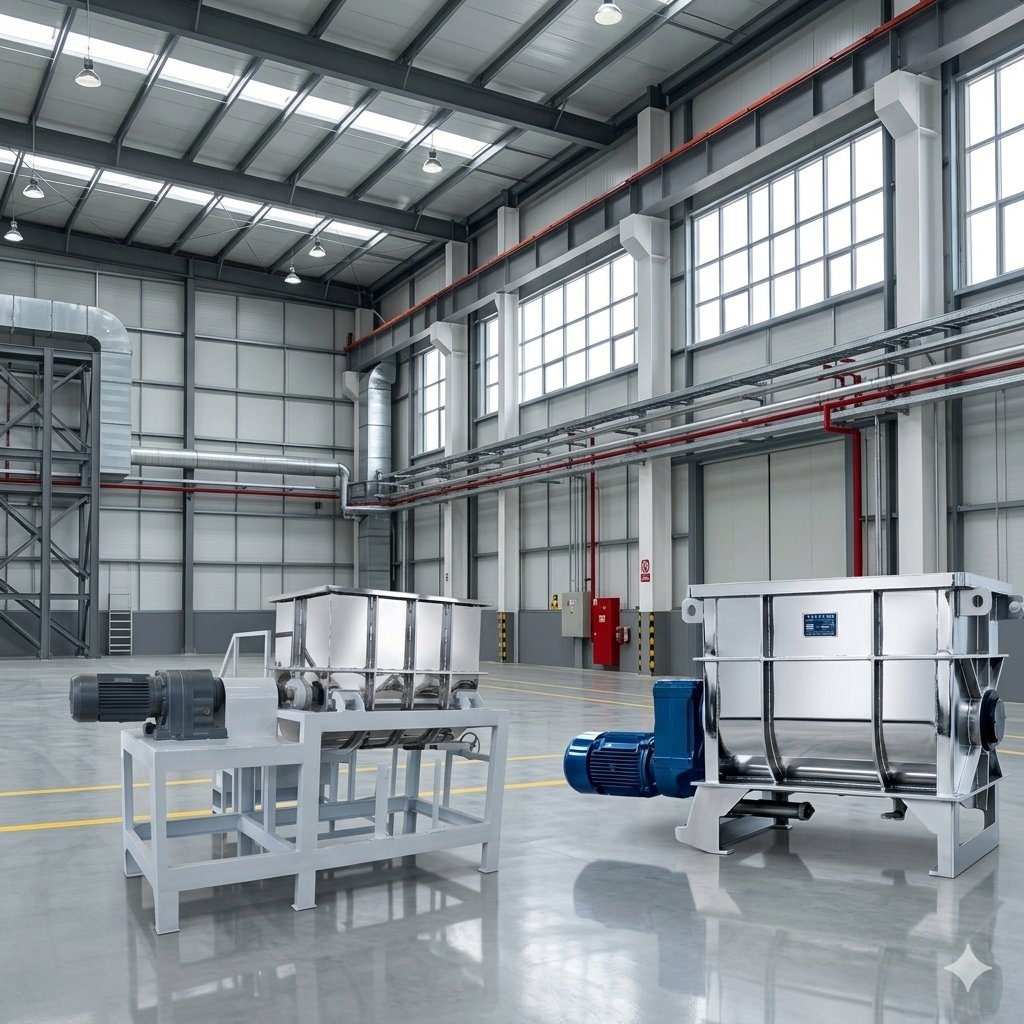

Soap Mixers (Mixing)
First, it mixes soap noodles with perfume, color and other additives before refining.

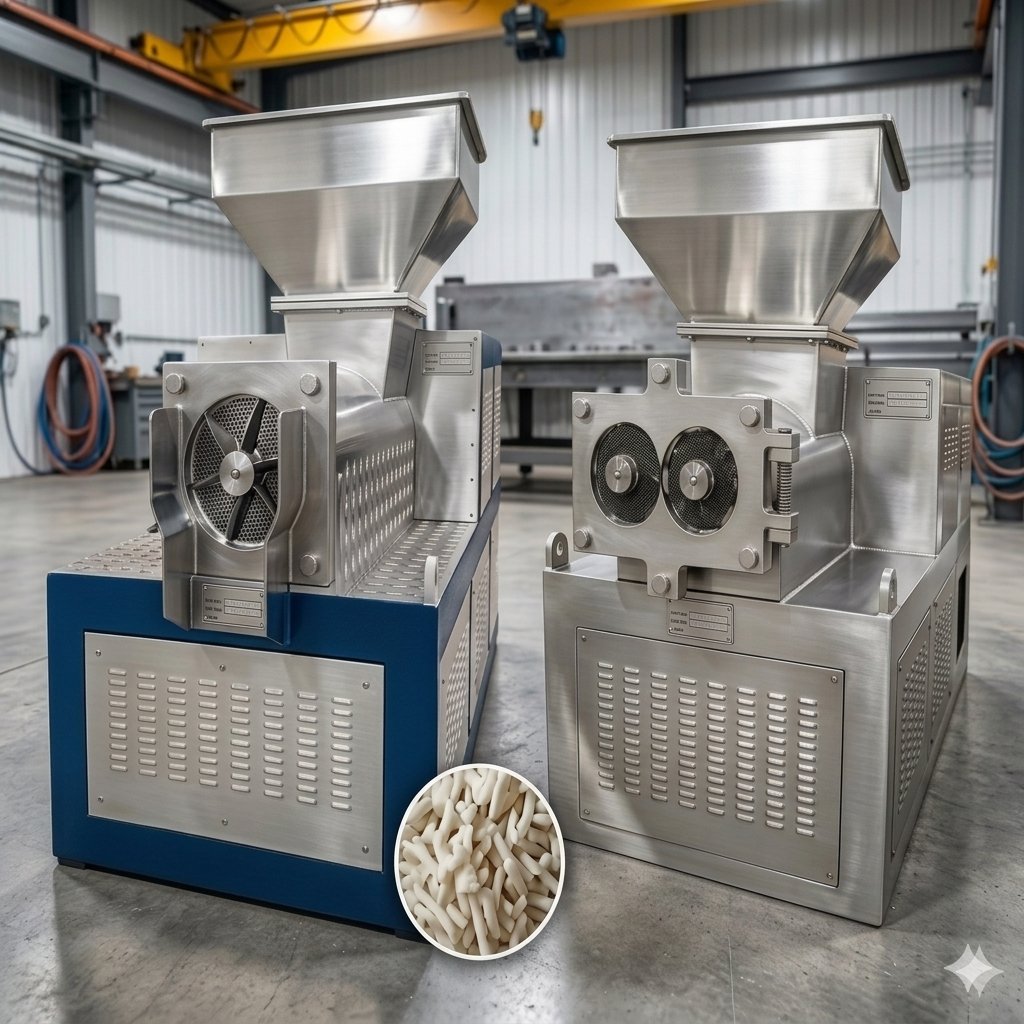

Soap Refiner (Refining)
Then, it refines the mixed soap and prepares it for milling and plodding.

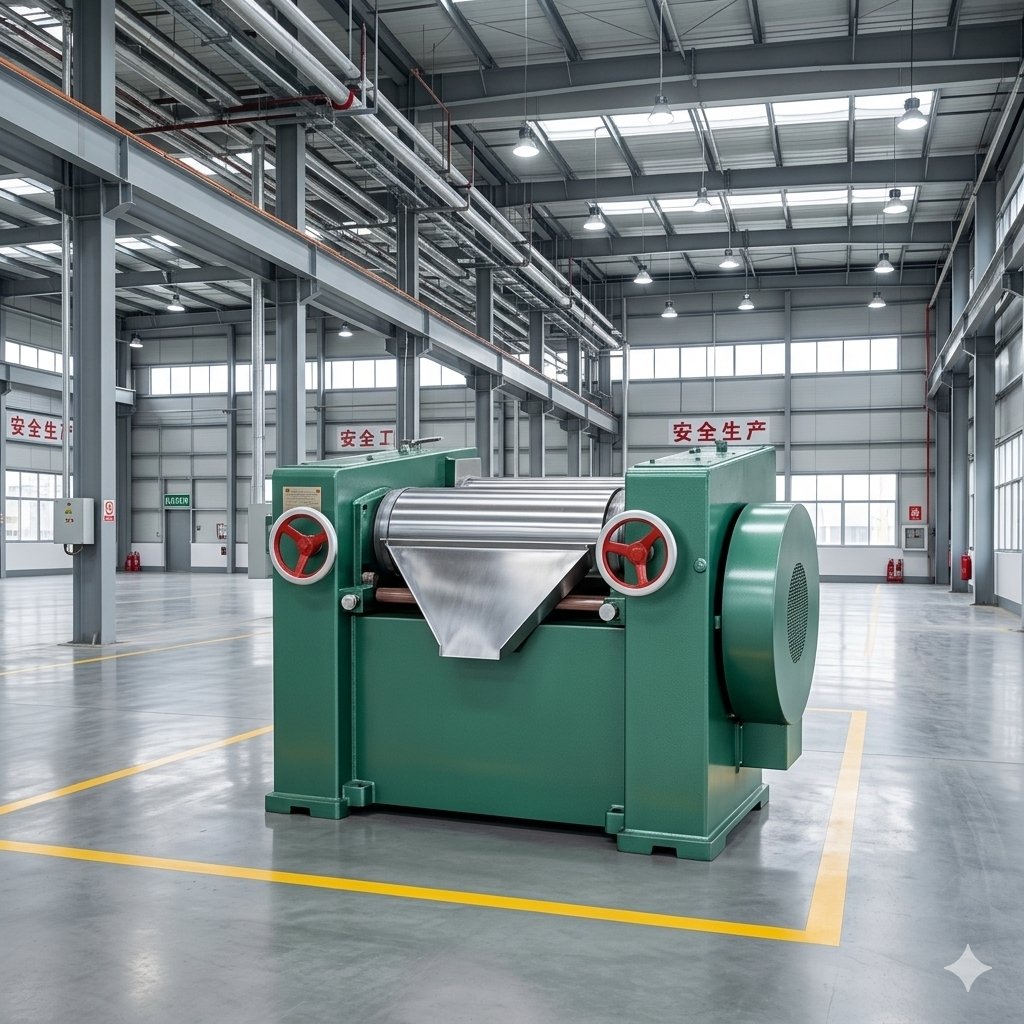

Three Roll Mill (Milling)
Next, it mills the soap to a fine, uniform texture for smooth, high-quality bars.
Key spec: milling fineness down to 15 μm.

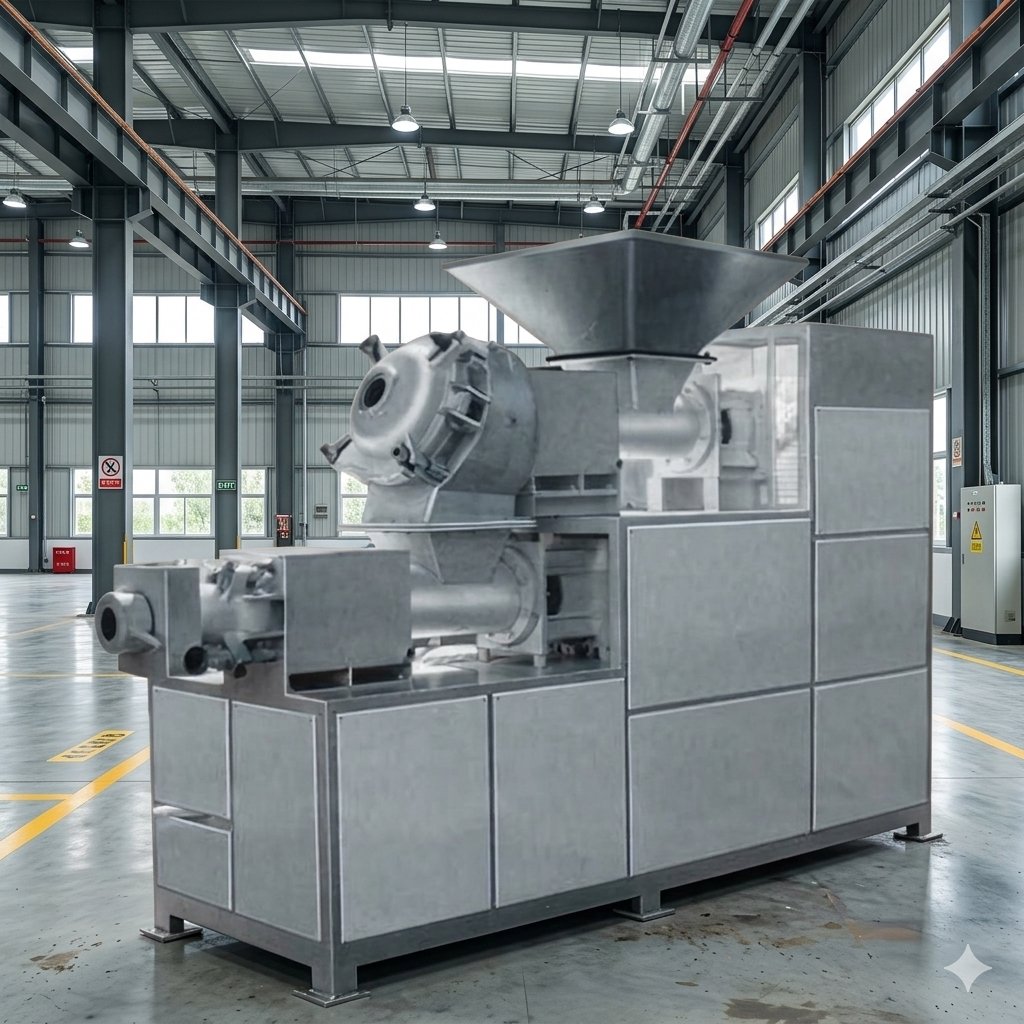

Vacuum Soap Plodder (Plodding)
Then, it refines, deaerates and extrudes the milled soap into a continuous bar under vacuum; stainless steel contact parts and VFD speed control.
Soap Cutting Machines (Cutting)
Next, this rotary cutting and embossing machine cuts the soap bar to length.
Key spec: cutting length adjustable from 4 cm to 100 cm.
Price: USD 5,000–6,000/set (FOB)
Automatic Soap Stamping Machines — XDA1000 (Stamping)
Then, a fully automatic stamper for toilet soap bars with your logo die.
Key spec: 1000–1200 kg/h.
Soap Stamping Machines — XD120 (Stamping)
In addition, a semi-automatic stamper for small toilet soap bars; a practical choice for small factories.
Key spec: model XD120.
Semi-Automatic Pneumatic Soap Stamping Machine (Stamping)
Moreover, an air-powered stamper that embosses your logo on soap bars; simple to operate.
Semi-Automatic Hydraulic Soap Stamping Machine (Stamping)
Also, a hydraulic stamper with safety light curtains; the die changes in under 60 seconds.
Key spec: die change < 60 seconds.
6-Side Soap Stamper (Stamping)
Finally, a fully automatic machine that stamps logos on all six sides of cubic soap bars.
Key spec: 20–40 pcs/min.
Standard Finishing Machines — Specification Summary
The figures below are the standard models published on each machine's product page; higher-capacity models are built to order. Follow any machine name to its full product page.
| Machine | Capacity | Power | Size (L × W × H) |
|---|---|---|---|
| Soap Mixer | 300 kg/h | 2.2 kW | 1500 × 1000 × 1150 mm |
| Three Roll Mill | 300 kg | 4 kW (roller Ø150 mm) | 975 × 820 × 950 mm |
| Vacuum Plodder | 300 kg | 4 + 7.5 kW (screw Ø180 mm) | 1800 × 1500 × 1650 mm |
| Soap Cutting Machine | Max 300 kg (cut bar 60–400 mm) | — | 1000 × 800 × 1350 mm |
C. Packing Machines
Soap Pleated Wrapping Machine
First, it wraps single bars in pleated paper or film for a clean retail finish.
Key spec: 10–25 pcs/min; for bars of Ø40–80 mm, thickness 8–40 mm.
Soap Stretch Film Wrapping Machine
In addition, it wraps soap bars tightly in stretch film.
Key spec: 15–25 pcs/min.
Soap Paper Packing Machine
Moreover, it packs soap bars in paper wrapping for retail sale.
Cartoning Machine / Box Soap Packing Machine
Then, it puts wrapped soap bars into cartons automatically.
Soap Pillow Packing Machine
Finally, it flow-packs soap bars in pillow-style film packs.
D. Auxiliary & Related Equipment

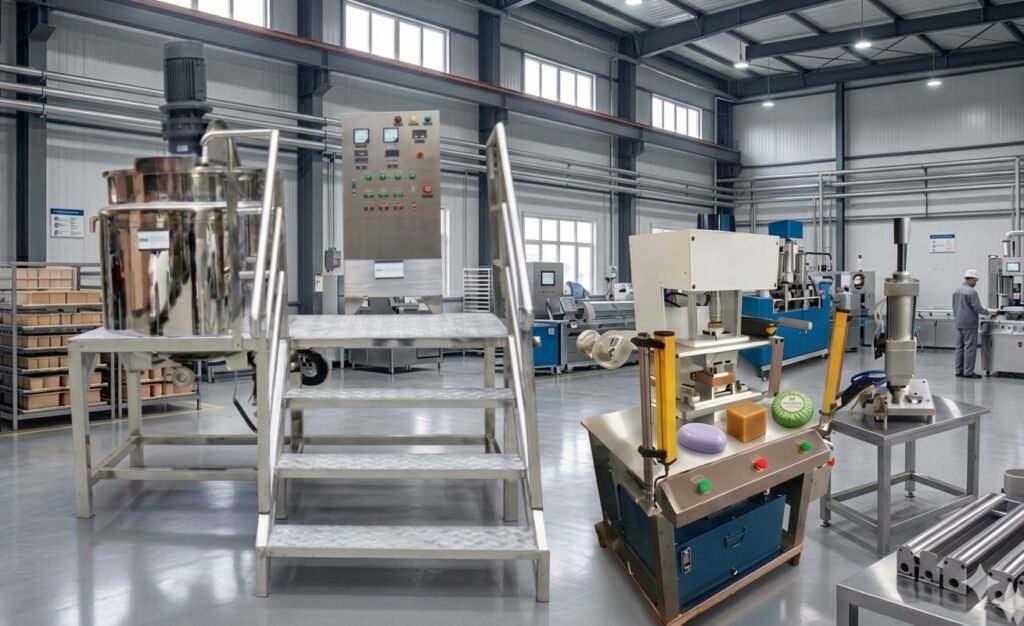

Handmade Soap Production Line
For example, a small line for handmade soap: melting, blending, moulding, cutting, stamping and packing.
Key spec: 150 kg/h; 26 KW; workshop 6 × 4 × 3.5 m; 2–4 workers per shift.
Soap Moulds
In addition, custom stainless steel moulds are made to your soap shape, size and logo.
Price: USD 500–600/set (EXW) — one cavity
Vacuum Pump
Moreover, it provides the vacuum for the plodder and the production line.
Low Temperature Chiller
In addition, it cools the stamping moulds and keeps soap shapes sharp and clean.
Liquid Detergent Mixing Tank
Also, a mixing tank for liquid detergent and liquid soap production.
Detergent Powder Making Machines
Finally, equipment for producing washing detergent powder.
Build Your Line, Stage by Stage
Buy a single machine, or combine stages into a complete line. In addition, tell us your soap type and capacity and we will configure the line for you.
First, Stage 01 — Forming, Cutting & Stamping: Start with a soap mixer, refiner, three roll mill and vacuum plodder to form soap noodles into bars, then cut them to size and stamp your logo or pattern with suitable moulds.
Then, Stage 02 — Wrapping & Labelling: Pack the finished bars with pleated paper, film or cartons — paper packing, cartoning, pillow packing, stretch film wrapping or pleated wrapping — for a consistent, retail-ready finish.
Finally, Stage 03 — Auxiliary & Liquid Products: Complete the line with auxiliary equipment — vacuum pump, air pump, conveyor belt and low temperature chiller — and add detergent powder or liquid detergent equipment if you also make washing powder or liquid soap.
I am a beginner. Should I start from oils or from soap noodles?
Start from soap noodles. In addition, buy ready-made soap noodles and run the finishing line first (mixing, milling, plodding, cutting, stamping, packing). Therefore, this needs a smaller workshop and a smaller budget. Finally, you can add a saponification system later and make your own soap noodles from oils.
How do I choose the right capacity?
Capacities come in tiers: 50–100, 100–200, 300–500 and 800–1000 kg/h, with laundry lines up to 3000 kg/h. In addition, choose by the output you can sell per day. For example, many new factories start at 100–200 or 300–500 kg/h and expand later. Finally, tell us your target and we will match the line.
What equipment does a complete soap production line include?
A complete setup has two parts. First, Part A makes soap noodles from oils and caustic soda (saponification system and vacuum drying). Then, Part B turns soap noodles into finished bars: soap mixer, soap refiner, three roll mill, vacuum soap plodder, soap cutting machine, soap stamping machine and a packing machine.
What is the lead time?
Standard lead time is 30 days after order confirmation, in both peak and off-peak seasons. In addition, we confirm the exact date for your configuration before you order.
What warranty and after-sales support do you provide?
All machines carry a 12-month warranty. After delivery, we provide operation guidance and maintenance support, including maintenance videos, so your team can run and maintain the line.
How are the machines packed and shipped?
Single machines and small orders that ship as LCL are packed in wooden cases. In addition, a complete line that fills a container is wrapped in plastic film. Moreover, we ship from Tianjin port, our main loading port, and other ports can be arranged on request; we export worldwide. Finally, payment is by T/T only.
Can I make soap in my own shape, with my own logo?
Yes. For example, soap moulds are made to your shape, size and logo. In addition, the cutting machine adjusts bar length from 4 cm to 100 cm, and our stamping machines emboss your logo on the bars. We also offer a 6-side stamper for cubic soap.
Why factories buy from Jasun
- Manufacturer since 2005 — KAIFENG JASUN INDUSTRY CO., LTD., Kaifeng, Henan, China
- Moreover, 80% of our output is exported, to Africa, the Middle East, South Asia, Latin America and Europe
- In addition, our own factory runs 3 production lines, with 6 R&D staff and 2 QC staff
- Furthermore, 12-month warranty on all machines
- Finally, 30-day standard lead time
Installation, Training & After-Sales Support
WhatsApp / Tel: +86-13937853263
★★★★★
"Excellent Seller. Highly recommended!"
— Coriks C., Philippines · Verified Alibaba order review, November 2021
Delivery, Installation and Training
The standard lead time is 30 days from order confirmation. Single machines and LCL orders are packed in wooden cases; a complete line that fills a container is wrapped in plastic film. We ship from Tianjin, our main loading port (other ports on request), and payment is by T/T only.
After the line arrives, our engineer can travel to your factory for installation, commissioning and team training — or we guide your team remotely, step by step. (The buyer covers the engineer's travel and salary.) Soap recipes for your products are provided as part of the handover, maintenance videos are supplied after the sale, and every machine carries a 12-month warranty. The full process is set out on our Installation, Training & After-Sales Support page.
Before You Order, Please Confirm These Details
Send us the following details and we will reply with a quotation and specifications:
- Raw material: soap noodles, or oils for saponification
- Soap type: toilet soap, laundry soap, or both
- Bar size and shape: the dimensions and shape of your soap bars
- Required output: kg per hour (50–100 / 100–200 / 300–500 / 800–1000; laundry lines up to 3000 kg/h)
- Packaging material: pleated paper, film, carton, or no packaging
- Automation level: semi-automatic or fully automatic
- For liquid soap projects, also confirm: filling volume, product viscosity, bottle sample, and cap type
Tell us three things: (1) do you want to start from oils or from soap noodles, (2) laundry soap, toilet soap, or both, and (3) the output you need per hour. We will reply with a recommended line configuration and full specifications.
